When engineers specify stainless steel round bar tolerances, diameter is usually the first number they look at. But diameter alone does not tell you whether a bar is truly ready for a machining operation. Roundness, straightness, and surface finish describe different characteristics of the bar, and each one can affect how the material behaves when it reaches your lathe, CNC machine, grinder, or other downstream operation.
At O’Hare Precision Metals, we supply and process precision ground round bar for manufacturers that need controlled dimensions and surface condition. Our centerless grinding operation can hold tolerances up to .0001 inch and produce a surface finish of 8 micro inches or better, with grinding capacity up to 9 inches in diameter and 50 feet in length.
The important point is that diameter tolerance, roundness, straightness, and surface finish are not four ways of describing the same thing. They control different aspects of the bar.
How Stainless Steel Round Bar Tolerances Define the Condition of the Bar
A stainless steel bar can meet its required diameter while still having a form or surface condition that matters to the next operation. That is why an RFQ or print should identify the characteristics that are actually critical to the finished component rather than relying on one general tolerance statement.
Diameter Tolerance Controls the Permitted Bar Size
Diameter tolerance establishes how much the actual diameter may vary from the specified nominal diameter.
If a print calls for a particular bar diameter, the tolerance creates the acceptable dimensional range around that target. This is the basic size control for the bar.
For example, specifying a nominal diameter without communicating the required tolerance leaves an important part of the purchasing requirement undefined. A rough stock allowance may be acceptable when substantial machining will follow, while a bar intended to enter a closely controlled machining process may require a much narrower dimensional range.
This is one reason centerless grinding is useful for round bar preparation. The bar passes between a grinding wheel and regulating wheel while wheel speed, feed rate, and positioning are controlled during the operation. At O’Hare Precision Metals, our verified centerless grinding capability reaches tolerances up to .0001 inch when the order requires it.
That number should not automatically be treated as the required tolerance for every stainless steel order. The correct tolerance still comes from the component design, material condition, downstream process, and purchase specification.
Roundness Describes the Shape of Each Cross Section
Roundness is different from diameter.
Roundness describes how closely a circular cross section approaches a geometrically correct circle. In geometric tolerancing, roundness is a form control. KEYENCE describes it as specifying how close a target should be to a perfect circle, while Mitutoyo describes the roundness tolerance zone using two coplanar circles.
That distinction matters.
Imagine measuring a bar across one diameter and finding that the measurement falls inside the dimensional tolerance. That single size measurement does not, by itself, describe the complete shape of the circumference.
For a manufacturer, this means diameter tolerance and roundness should not be treated as interchangeable specifications.
Diameter asks:
Is the bar the required size?
Roundness asks:
How circular is the cross section?
O’Hare Precision identifies roundness as one of the controlled characteristics of its precision processing, but the company does not publish one universal numerical roundness tolerance for every stainless steel round bar.
If your component requires a specific roundness limit, that value should therefore be included in the RFQ or drawing rather than assumed from the diameter tolerance.

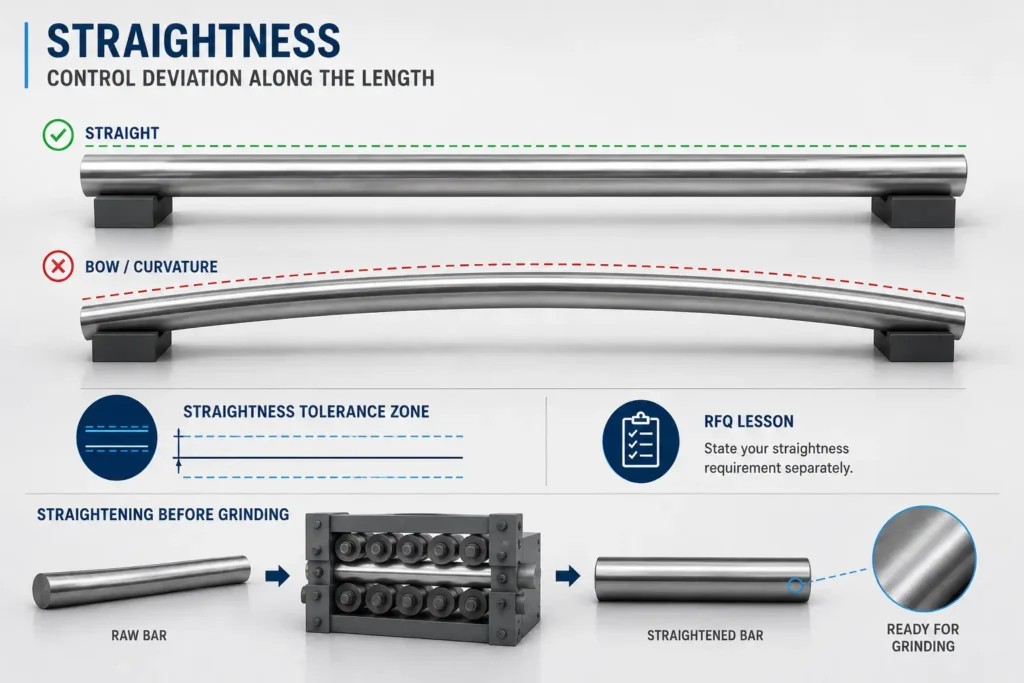

Straightness Controls Deviation Along the Length of the Bar
Straightness shifts the dimensional question from the cross section to the length of the material.
KEYENCE defines straightness as a form tolerance indicating how straight a target should be and notes its use for controlling warpage in long objects. Mitutoyo similarly describes a straightness tolerance zone using parallel straight lines.
For round bar, that distinction becomes increasingly important as bar length increases.
A bar could have an acceptable diameter and satisfactory local roundness while still showing bow or curvature over its length. Those are separate conditions.
O’Hare Precision includes straightening among its in house processing operations. Its published manufacturing process also explains that straightening is performed before grinding because bow and camber in raw bar can interfere with maintaining consistent grinding results along the bar.
This gives buyers another important RFQ lesson: do not assume that a diameter requirement automatically communicates your straightness requirement.
If straightness is critical to how the bar will feed, rotate, locate, or undergo subsequent machining, state that requirement separately.
Surface Finish Describes the Condition of the Bar Surface
Once size and form have been considered, there is another characteristic to specify: surface finish.
Surface roughness describes the microscopic peaks and valleys that make up a manufactured surface. It is therefore different from diameter, roundness, and straightness. Surface roughness can influence characteristics such as contact behavior, wear, and sealing depending on the finished component and application.
For a buyer, surface finish answers a different question:
What condition should the outside surface have after processing?
At O’Hare Precision Metals, centerless ground round bar can be produced with a verified surface finish of 8 micro inches or better.
Again, this does not mean every order automatically needs an 8 micro inch finish.
The drawing and downstream manufacturing requirement should determine the finish you specify.
A useful RFQ therefore separates:
- required diameter
- diameter tolerance
- straightness requirement
- roundness requirement
- surface finish requirement
Treating those as separate fields makes the required finished condition much clearer than simply requesting a “precision bar.”
Why These Four Requirements Should Be Specified Separately
The easiest way to understand these specifications is to assign each one a specific job.
| Specification | What It Controls | Main Question |
| Diameter tolerance | Permitted variation in bar diameter | Is the bar the correct size? |
| Roundness | Circular form of a cross section | Is the cross section sufficiently circular? |
| Straightness | Deviation along the bar or its axis | Is the bar sufficiently straight? |
| Surface finish | Microscopic surface condition | Is the outside surface finished as required? |
A requirement in one column does not automatically provide a value for another.
That is particularly important when ordering precision ground stainless steel round bar. The words “precision ground” describe processing, but your print or RFQ still needs to communicate the dimensional and surface results that matter to your component.
What Should You Include in a Stainless Steel Round Bar RFQ?
Before requesting a quote, start with the material itself.
Specify the stainless steel grade, then identify the dimensional and processing requirements that define the bar you actually need.
A useful RFQ may include:
- Stainless steel grade
- Required diameter
- Diameter tolerance
- Required length
- Straightness requirement, when applicable
- Roundness requirement, when applicable
- Required surface finish
- Quantity
- Additional processing requirements
This prevents a broad request such as “1 inch precision stainless round bar” from carrying several unstated assumptions.
O’Hare Precision Metals also performs supporting operations including straightening, saw cutting, chamfering, turning, milling, burnishing, polishing, and packaging, allowing buyers to discuss additional preparation when those operations are part of the requirement.
The Right Tolerance Starts With the Finished Component
The smallest numerical tolerance is not automatically the correct tolerance.
Start with what the finished component and machining process require.
Then work backward.
Ask:
What diameter must the bar enter the machine at?
Then:
How much diameter variation can the process accept?
After that, determine whether roundness, straightness, and surface finish require their own controls.
This creates a more useful specification than treating “tight tolerance” as a single quality level.
At O’Hare Precision Metals, we can work from your stainless steel grade, diameter, length, tolerance, and processing requirements to determine the appropriate round bar preparation. Our centerless grinding capabilities include tolerances up to .0001 inch, surface finishes of 8 micro inches or better, and bars up to 9 inches in diameter and 50 feet in length.
Submit your requirements through our Request a Quote process so we can review the material and dimensional requirements before processing.
Frequently Asked Questions
Is diameter tolerance the same as roundness?
No. Diameter tolerance controls acceptable size variation, while roundness controls how closely a cross section approaches a circular form. They describe different characteristics of the bar.
Can a stainless steel round bar meet its diameter tolerance but still have a straightness requirement?
Yes. Diameter and straightness describe different geometric characteristics. Straightness controls deviation along the bar or its axis rather than simply its measured diameter.
What surface finish can O’Hare Precision Metals achieve with centerless grinding?
O’Hare Precision Metals publishes a centerless grinding capability of 8 micro inches or better, depending on the order requirements.
What centerless grinding tolerance does O’Hare Precision Metals offer?
Our published centerless grinding capability reaches .0001 inch tolerance. The actual requirement for an order should be specified according to the component and manufacturing process.
Should roundness and straightness values appear on the RFQ?
If either characteristic is critical to your component or downstream operation, include the required value rather than assuming it is covered by the diameter tolerance.
